18 Months 2024 Economical Electrostatic Manual Powder Coating Gun for Volume Production

Name: 18 Months 2024 Economical Electrostatic Manual Powder Coating Gun for Volume Production
Brand: huaxiang
Price: 390.00 USD

Wholesale 18 Months 2024 Economical Electrostatic Manual Powder Coating Gun for Volume Production from china suppliers

Place of Origin : zhejiang

Brand Name : huaxiang

Packaging Details : standard package

Supply Ability : 1000 Set/Sets per Week

MOQ : 1

Price : $390.00/sets >=1000 sets

Type : Coating Production Line

Substrate : Steel

Condition : New

Machine Type : powder coating machine, Coating Equipment

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product

Warranty of core components : 1 Year

Core Components : Motor, Engine, Pressure vessel, Gearbox, PLC, Pump, Bearing, Gear

Coating : Vacuum Coating

Dimension(L*W*H) : customized

Warranty : 18 months

Key Selling Points : Competitive Price

Applicable Industries : Farms, Building Material Shops, Printing Shops, Machinery Repair Shops, Advertising Company, Manufacturing Plant, Construction works , Retail, Energy & Mining

Showroom Location : France, Saudi Arabia, Russia, Uzbekistan, Spain

Weight (KG) : 40

Product name : spray coating machine

Function : Metal Surface Powder Coating

Warranty period : 18 months

Contact Now

HXC-Electrostatic Powder Coating Machines
High Efficiency:
Uniform Coating: Electrostatic spraying technology ensures that powder adheres evenly to the surface of workpieces, resulting in consistent coating thickness and better appearance.
High Utilization Rate: Unattached powder can be recycled and reused, reducing material waste.
Environmentally Friendly:
Solvent-Free: Powder coatings do not contain volatile organic compounds (VOCs), making them environmentally friendly and reducing air pollution.
Waste Reduction: The ability to recycle unused powder lowers waste generation.
Superior Coating Performance:
Corrosion Resistance: Electrostatic powder coatings typically offer stronger corrosion and wear resistance, extending the lifespan of the items.
Excellent Adhesion: The electrostatic effect enhances the adhesion between the coating and the substrate, reducing the risk of peeling.
Diverse Options:
Variety of Colors and Effects: Offers a wide range of colors, gloss levels, and effects (such as matte, gloss, texture, etc.), catering to different needs.
Wide Applicability:
Multiple Materials: Suitable for surface treatment of various materials, including metals and plastics, widely used in industries such as automotive, appliances, and furniture.
Cost-Effectiveness:
Lower Long-Term Costs: The durability of the coatings reduces the frequency of maintenance and re-coating, thereby lowering overall costs.
Safety:
Reduced Fire Risk: Electrostatic spraying is relatively safe, and the fire resistance of the powder itself is better than some liquid coatings, reducing fire hazards.

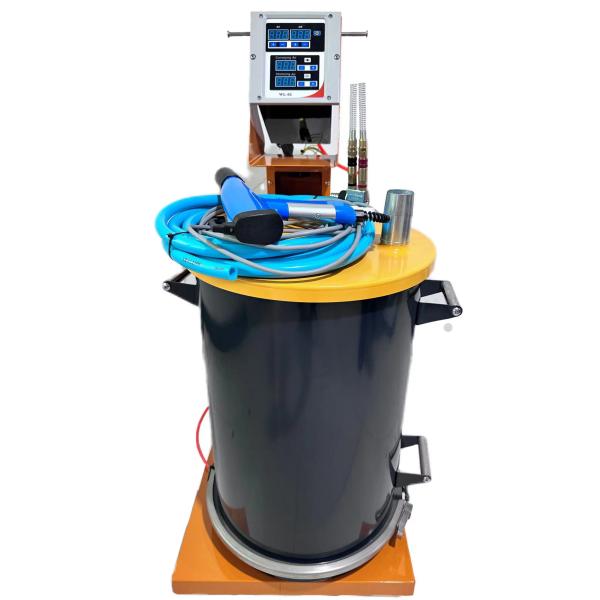

Products Show

18 Months 2024 Economical Electrostatic Manual Powder Coating Gun for Volume Production

Product parameter

_Voltage	_100~240VAC
_Frenquency	_50/60HZ
_power	_50W
_{Safety Level}	_IP54
_{Ambient Temperature}	_0-40°C
_{Input Air pressure}	_{0.55MPa(5.5bar,80PSI)}
_{Maximum powder injection}	_600g/min
_{Gun weight}	_480g
_{Maximum Output Voltage}	_120kv
_{Maximum Output Current}	_120µA
_{The length of Powder Tube}	_3.5meters
Accessories included in the machine	Quantity
_Gun	_{1 SET}
_Controller	_{1 SET}
_{Low Temperature Soft Powder Pipe}	_{1 SET /3.5Meters}
_{Vertical Powder Pump}	_{1 SET}
_{Stainless Steel Barrel}	_{1 SET /40L-45L}
_{Overflow Pipe}	_{1 SET}
_{Movable Trolley}	_{1 SET}
_{Oil and Water Separator}	_{1 SET}
_Consumables	_Some
Net weight of machine	40KG
package Size ,Weight	500mm(L)500mm(W)1020mm(H), 45-50KG

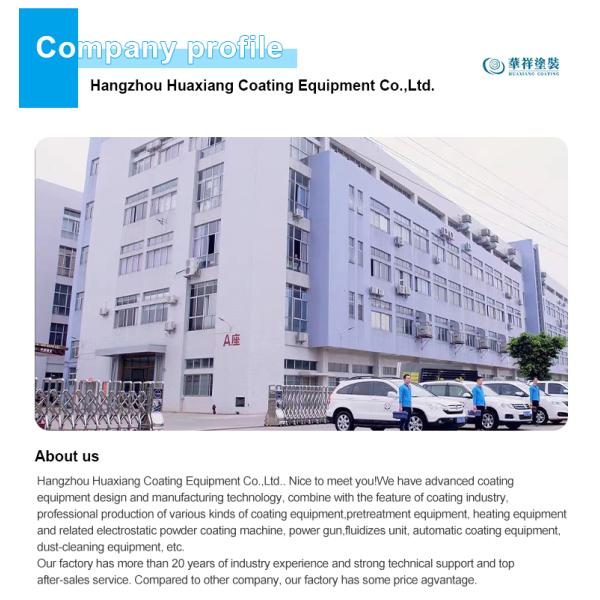

Company profile

Cooperation

Certificate

Transportation

FAQ

^{Q: Are you trading company or manufacturer ?

A: We are a 20-year factory, and we welcome you to visit the factory very much.}

^{Q: How is it packaged?

A: If you use carton box 56*70*68cm, Total weight45kg ,if you use wooden case 61*75*65cm, Total weight 50kg. Transportation will be very safe. And the machine will not be damaged during transportation.}

^{Q:How long is the delivery time?}

^{A:3-7 days after order confirmation}

^{Q:What should I do if there is a problem with the machine?}

^{A:We provide you with a 18 months warranty. If there is any problem with the machine or spare parts need to be replaced, we will send it to you by express with in 3 days.Our engineers will help you solve the problem by video phone or telephone.}

^{Q:How to choose the right machine and how to ensure the quality?}

^{A:You can select machines on our website according to your requirements. Or you can let our seller know what specifications you require or what your parts are, so let our seller recommend the right machine for you. We have many years of trading machines and exported them to more than 100 countries.}

^{Q:How to pay?}

^{We can conduct transactions on ALI online platform, and you can pay by T/T or credit card. You can also pay to our company's commercial bank account,Payment ≥ 5000USD, 30% T/T in advance, balance before shipment}

^{If you have another question, pls feel free to contact us , And the price can be negotiated}

^(Victoria)

^{WhatsApp:+ 86 18767152863}

^{WeChat:+ 86 18767152863}
